| Emuge India is a joint venture manufacturing company promoted by Emuge-Franken Group of companies, Germany and Precomp Tools Pvt.Ltd, Pune. Emuge India is established for manufacturing of taps. The company positions itself as solution providers in tapping technology and it works towards finding solutions and improvements in tapping operations in every conceivable engineering material. |
|
| |
 |
| Product Range: |
| |
 |
|
HSS Machine Taps |
|
|
|
|
Cold Forming Taps |
|
|
|
|
Thread Milling Cutters |
|
|
|
|
Tap Holders for Rigid Tapping |
|
|
|
|
Special Taps – as per customer’s specifications |
|
|
|
|
 |
| |
|
|
 |
Machine Taps |
| |
| Emuge is the premiere supplier of taps for the most demanding tapping applications. Emuge taps are used in most industries including automotive, aerospace and high-tech. All taps are available in both ISO & DIN standards. The product range includes standard and special taps in M, MF, UNC, UNF, BSW, BSF, G, NPT, NPTF, BSPT applications. Emuge offers fluteless taps for excellent thread finish and tool life with option of oil grooves and internal coolant supply. |
| |
|
|
| |
 |
Carbide Thread Mills |
| |
| Thread Milling is a very useful alternative to thread cutting or the cold-forming of threads. Emuge offers a vast range of thread mill cutters, both in solid carbide and insert-type with a host of special thread mill cutters designed to meet customer’s exact specifications. The special range includes cutters with countersinking step, thrillers, circular thrillers, thread mills with recessed neck, face chamfer with or without cutting face. |
| |
|
|
| |
 |

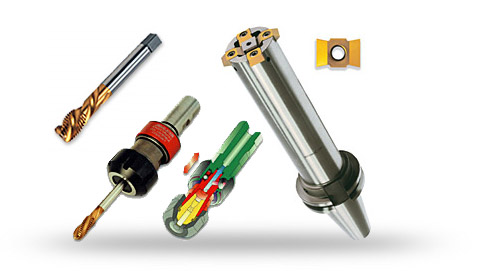

Gigant-ic - Circular Thread Milling |
| |
| This unique new indexable insert thread mill solution provides 4x longer tool life and unsurpassed thread finish quality - the industry's most versatile system for threads 1" - M24 and above. Emuge Gigant-ic is based on lean manufacturing principles and facilitates quick set-ups and rapid changeovers for a wide range of threading applications. |
| |
|
|
| |
 |
Rigid Tapping Holder – KSN/Soft Synchro |
| |
| The tap holders of Type KSN are preferably designed for application in CNC machining centres & CNC turning machines.
By installing a minimal length compensation on compression and on tension, arising minimal pitch differences between synchronous spindle and tap - which would lead to high thread flank friction forces - are
compensated.
An eventual increase of the axial force during the thread cutting cycle is reduced to a minimum. The resulting advantages are the following: |
| |
|
|
No miscutting of the threads |
|
|
|
|
Optimized tool life of the tap |
|
|
|
|
Suited for internal coolant supply |
|
|
| |
|
|
|
|
|
